Understanding OEM Color Matching

What Is OEM Paint?

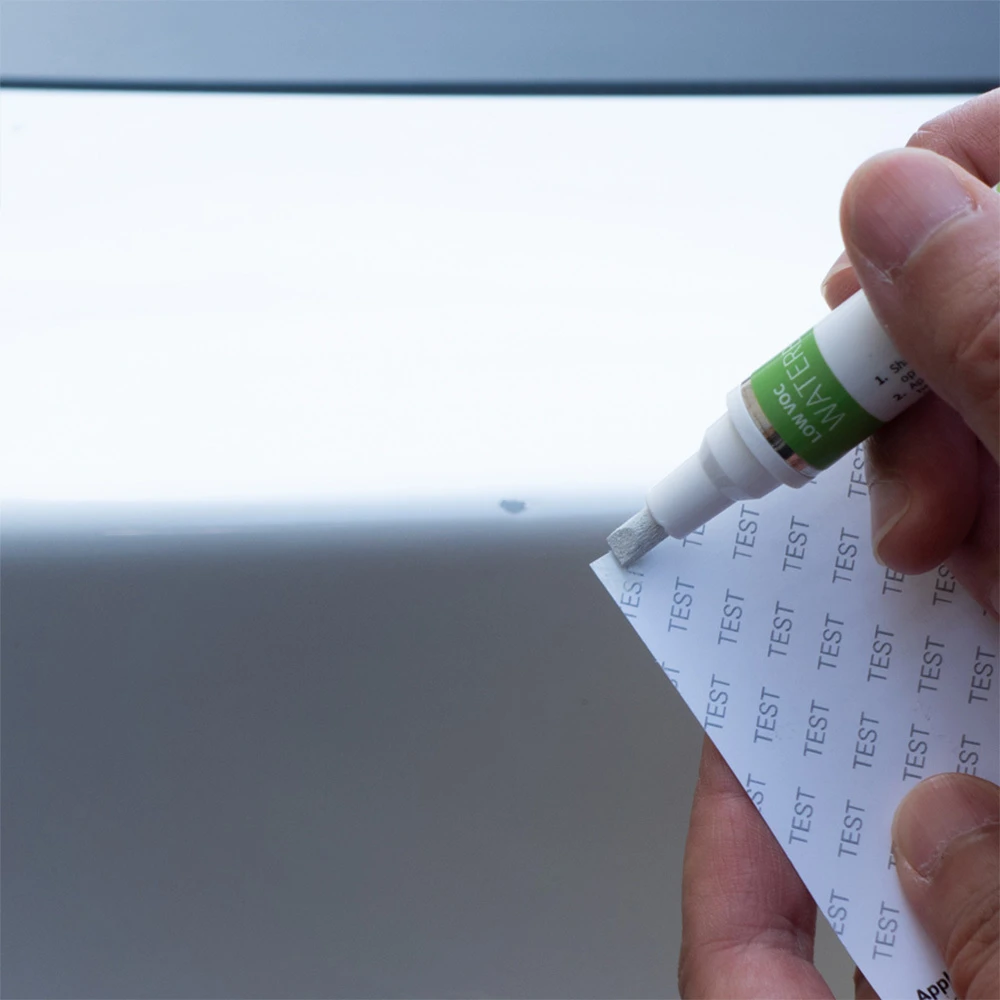

Hand using a touch up paint pen on a printed color test card.

Tricoat Paint Systems

Tricoat paint is a premium factory finish used on select colors that creates exceptional depth and dimension. If your vehicle has a tricoat color, TouchUpDirect automatically provides two separate colorcoat applicators instead of one.
TouchUpDirect basecoat and midcoat bottles beside a mixing cup for a tricoat finish.

How Tricoat Paint Works

Tricoat paint uses three layers instead of two: basecoat, midcoat, then clearcoat. The midcoat is what makes tricoat different—it's a pearl or effect layer that creates the finish's signature depth and color shift, and it always goes between the basecoat and clearcoat.

The three layers:
  • Basecoat – the foundation color, always applied first
  • Midcoat – the pearl/effect layer that creates depth and color shift
  • Clearcoat – the protective gloss layer on top
For pearl tricoat colors, the midcoat often looks translucent or semi-transparent going on. That's not a mistake and it's not clearcoat—pearl particles are suspended in a clear carrier that lets light pass through to the basecoat and reflect back, which is exactly what creates the depth and shift. Don't skip it because it looks too sheer. You don't need to identify tricoat yourself. Enter your paint code and the system automatically detects tricoat colors and includes both basecoat and midcoat applicators in your kit.

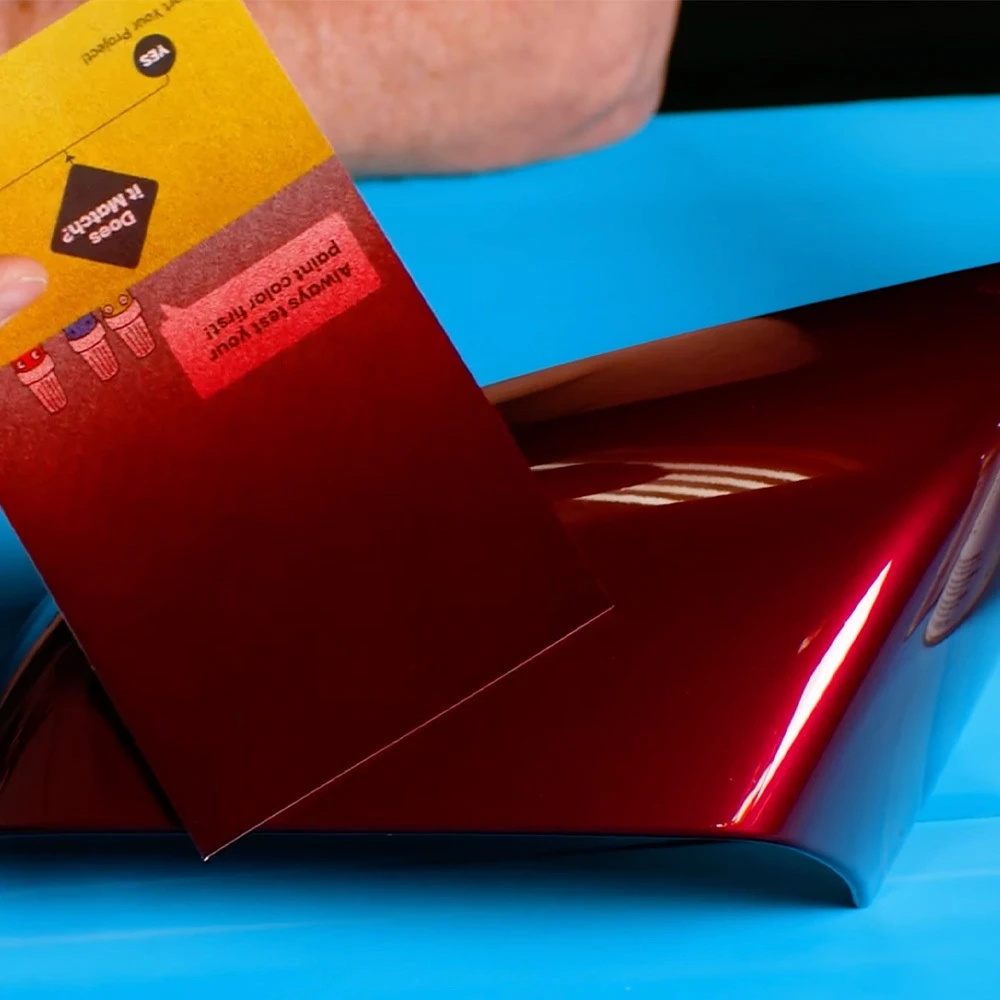

Hand comparing a painted test card with a red vehicle panel.

How to Apply Tricoat Paint

Tricoat always applies in one fixed order—basecoat, then midcoat, then clearcoat—with dry time between every layer:

  1. Prep the surface – clean, sand if needed, prime bare metal or plastic
  2. Apply basecoat – 2-4 coats until covered, 15 minutes between coats
  3. Let basecoat dry – 30-60 minutes, until fully dry to the touch
  4. Apply midcoat – 2-3 coats over the basecoat, until color match is reached.
  5. Let midcoat dry – 30-60 minutes, until fully dry to the touch
  6. Apply clearcoat – 2-3 coats for protection and gloss
Midcoat coverage is the step that determines color match: too little or too much and the color won't match your vehicle's original finish. Use the test card to find the right number of coats, apply thin layers, and check from multiple angles before moving on to clearcoat.

Most common mistakes: applying midcoat before basecoat, skipping midcoat entirely, applying it too thick, or mistaking it for clearcoat. Order matters—basecoat, midcoat, clearcoat, always.

Which Colorcoat Applicator Should I Choose?

2 in 1
Rating: 4.9
Door Dings
Stone Chips

Combo: 2-in-1 Pen + Brush

Starting at $33

Designed for flexibility: fix tiny chips with the pen and small scratches with the brush.

Rating: 4.8
Large Scratches
Repainting Panels
Painting Access

Aerosol Spray Can

Starting at $44

Great for large scratches and repainting projects—sprays evenly for a factory-finish look.

Rating: 4.8
Small Scratches

Touch Up Brush

Starting at $25

Great for smooth coverage on small areas—perfect for scratches under a quarter in size.

Rating: 4.5
Door Dings
Stone Chips

Touch Up Pen

Starting at $25

Perfect for precise, targeted repairs on chips and nicks—without the mess.

Rating: 4.8
Large Scratches
Repainting Panels

Professional Sizes

Starting at $130

Great for smooth coverage on small areas—perfect for scratches under a quarter in size.

Color Lab

Made By Us. Powered By PPG.

We're often asked who makes TouchUpDirect paint — the answer is simple: we do. Every Colorcoat formula is made in-house, matched to your vehicle's exact factory paint code. But we don't start from scratch — our color comes from PPG, one of the largest coatings companies in the world.

  • A global leader — PPG operates in more than 70 countries and is one of the world's largest suppliers of paints and coatings.
  • Trusted by automakers — PPG is a leading supplier of coatings for automotive manufacturing, working directly with automakers to deliver accurate, durable color across entire vehicle lines.
  • Nearly 150 years in coatings — Founded in 1883, PPG has been developing automotive color technology since the 1920s, decades before "touch-up paint" was even a category.
We match those same automotive-grade materials to your vehicle's exact factory paint code — so your touch-up is built on the same standard of color the industry itself relies on.

Common Colorcoat Application Mistakes

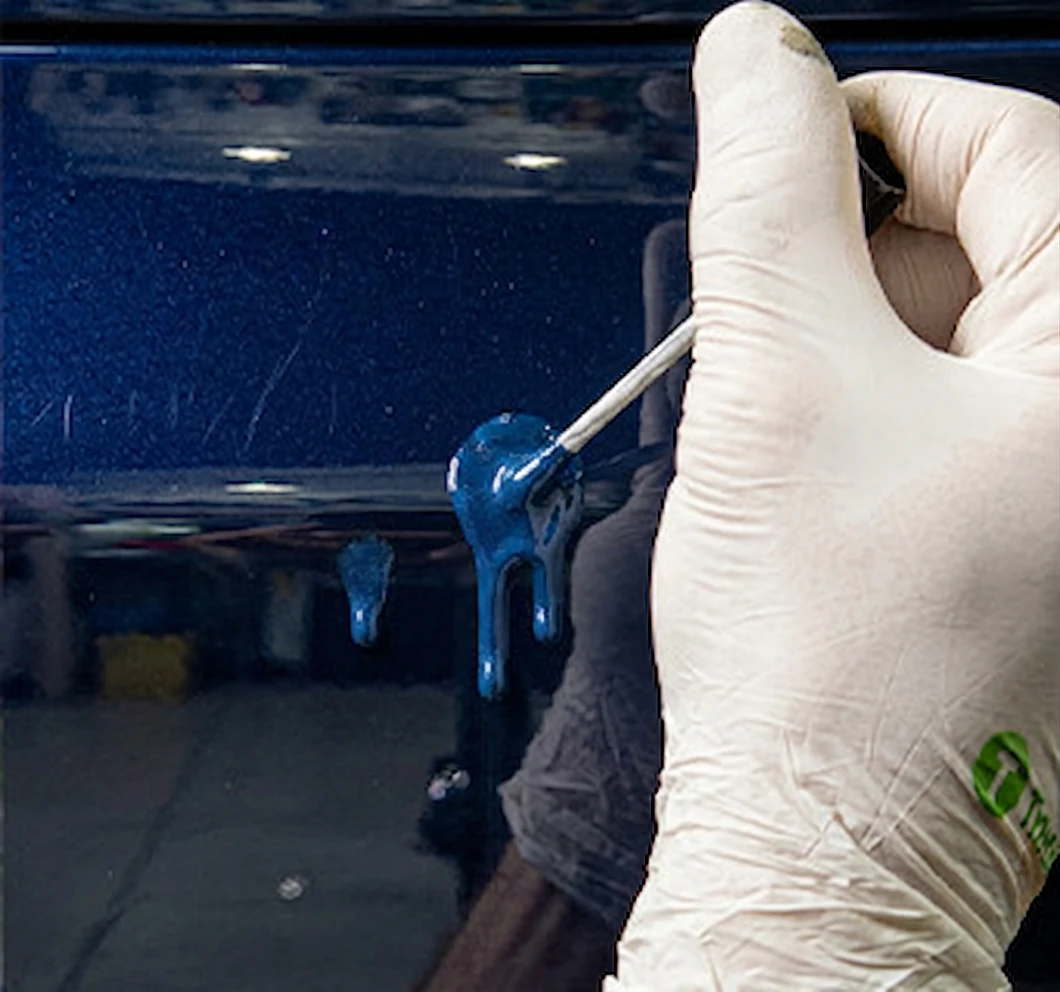

Gloved hand applying a thick coat of blue touch up paint.

Applying Coats Too Thick

Problem: Runs, drips, extended drying time, color mismatch

Solution: Multiple thin coats are always better than one thick coat

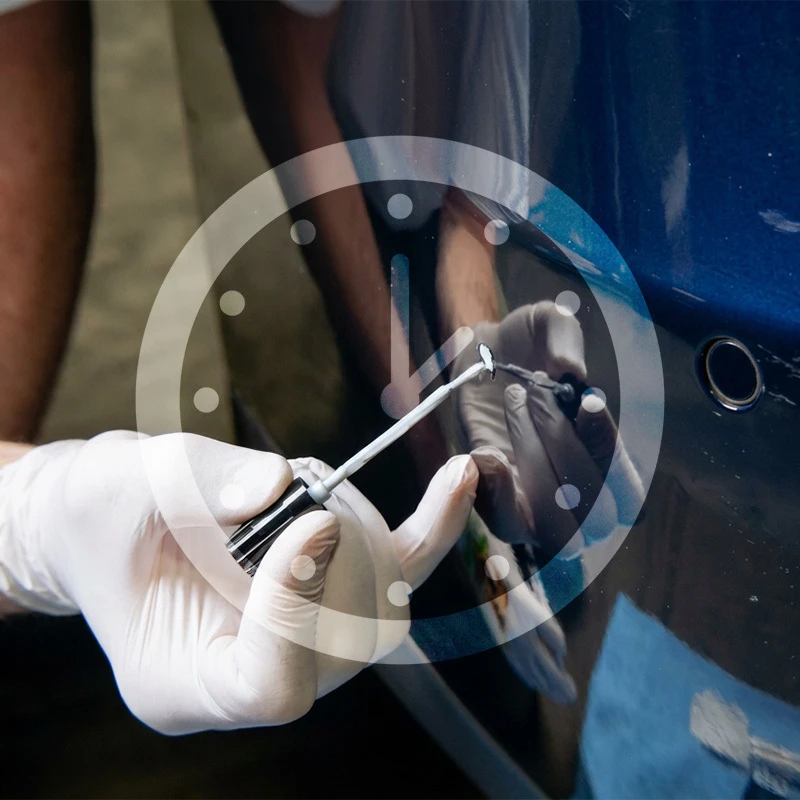

Gloved hand applying touch up paint to a blue vehicle panel.

Not Waiting Between Coats

Problem: Solvent trapped underneath, poor adhesion, texture issues

Solution: Always wait minimum 10-15 minutes between colorcoat applications

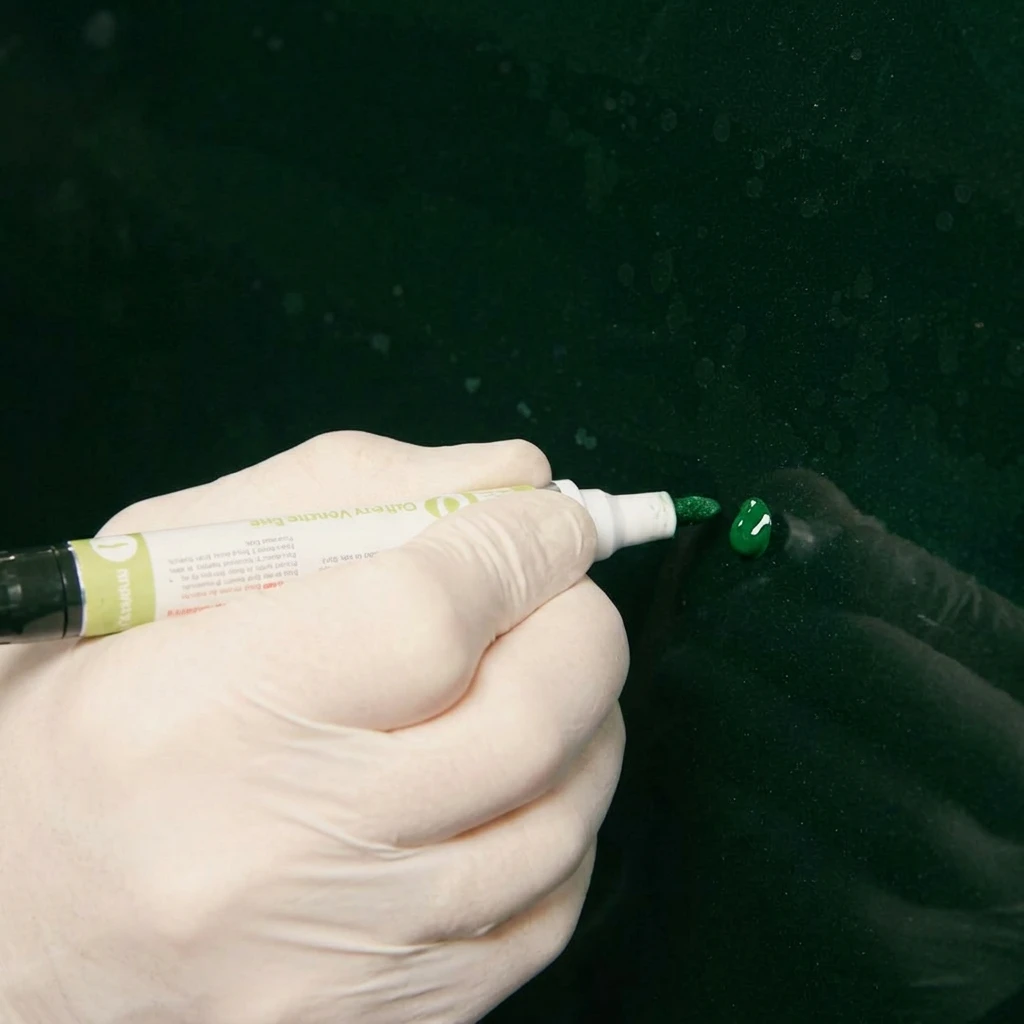

Gloved hand applying green touch up paint that does not match the vehicle panel.

Wrong Color Code

Problem: Obvious color mismatch even after clearcoat

Solution: Verify paint code on vehicle before ordering (driver's door jamb)

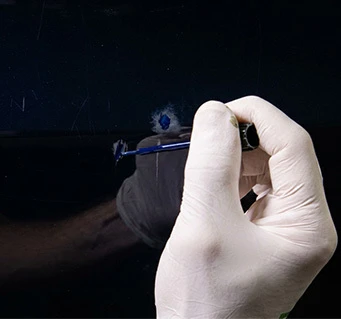

Gloved hand applying dark blue touch up paint to a chipped vehicle panel without primer.

Skipping Primer

Problem: Poor adhesion, premature peeling, rust underneath

Solution: Always prime bare metal or plastic before colorcoat

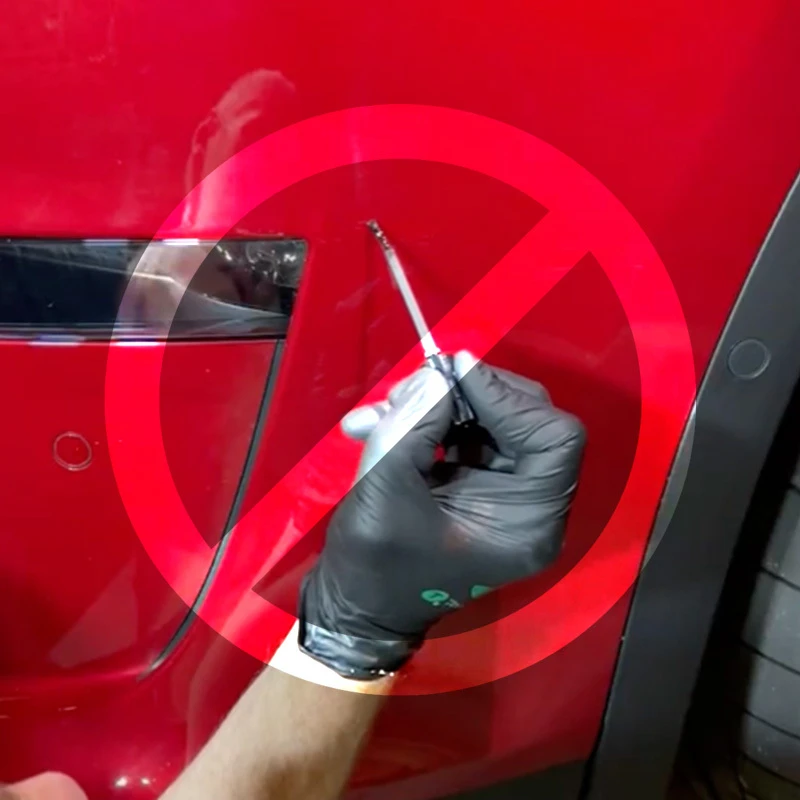

Gloved hand applying red touch up paint to a vehicle door with a warning symbol indicating clearcoat was skipped.

Not Applying Clearcoat

Problem: Flat appearance, color doesn't match, no protection

Solution: Clearcoat is mandatory—colorcoat alone will not match factory finish

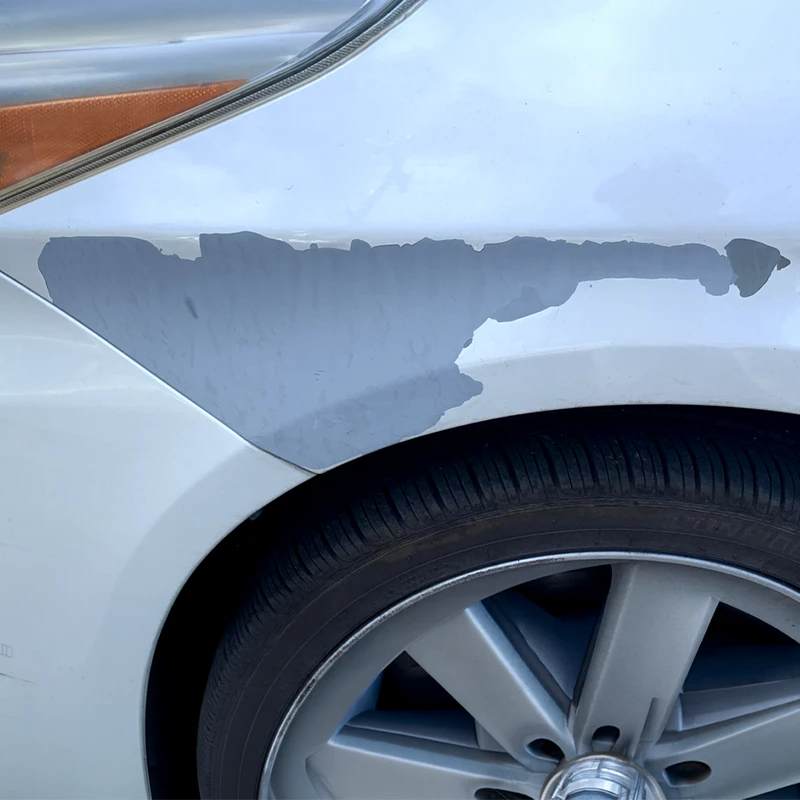

Large area of gray paint peeling from a white vehicle fender above the wheel.

Skipping Primer

Problem: Paint won't adhere properly, peels, or rusts underneath

Solution: Always primer bare metal or plastic-no exceptions

Helpful Tips

Common Primer Mistakes To Avoid

The mascot is decorative because the adjacent text explains the information.

Why Your Color Match Depends on Correct Application

Even with the correct OEM paint code, application technique affects the final color match:
  • Number of coats – Insufficient coverage shows primer or substrate underneath
  • Clearcoat application – Final appearance only visible after clearcoat seals the color
This is why following application instructions is as important as having the correct color code.

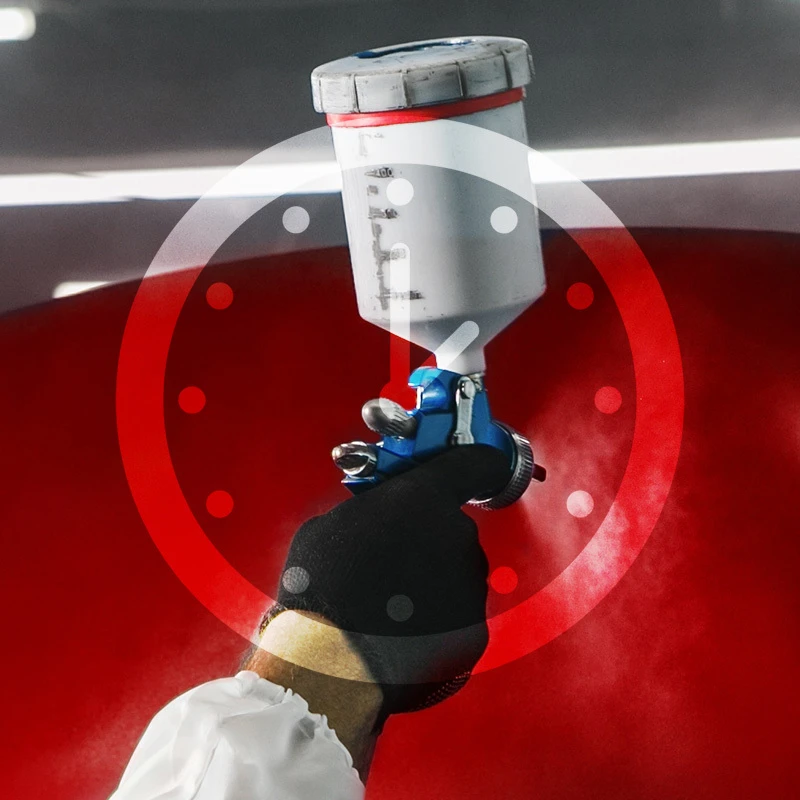

Gloved hand using a spray gun to apply colorcoat to a red vehicle panel.

How Long Does Colorcoat Take to Dry?

Dry Times: Pen/Brush vs. Aerosol: Temperature and humidity affect drying time. Apply in 60-80°F with humidity below 85% for best results.
  • Touch-dry: 10-15 min (pen/brush) · 15-20 min (aerosol)
  • Ready for next coat: 15-30 min, either method
  • Ready for clearcoat: 30-60 min after final coat, either method

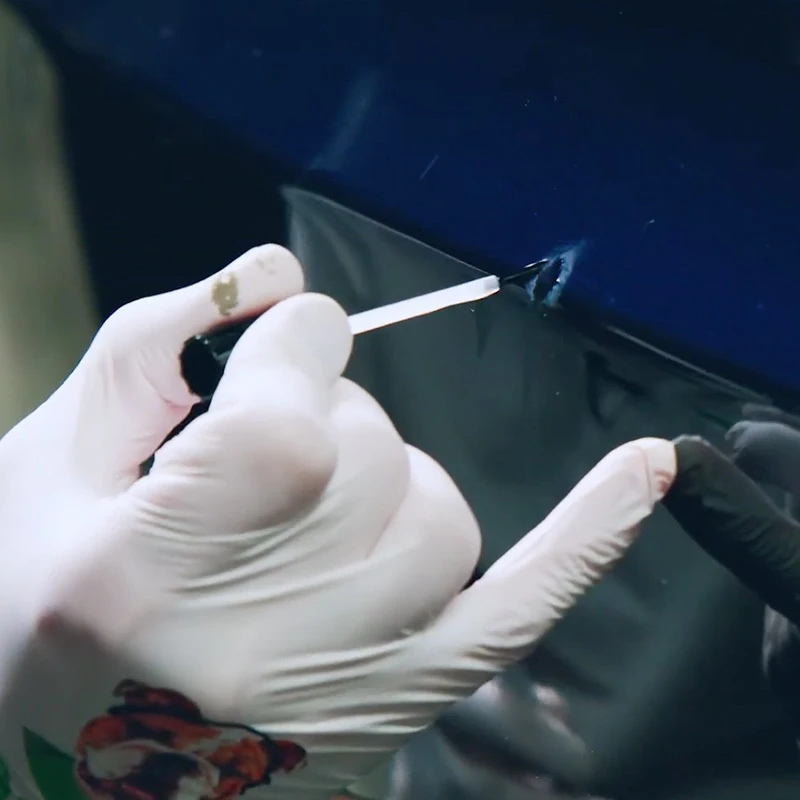

Gloved hand applying clearcoat to a dark blue vehicle panel.

When to Apply Clearcoat

Apply clearcoat as soon as colorcoat is fully dry to the touch (typically 30-60 minutes after final colorcoat application).

Critical timing window: Apply clearcoat within 24 hours of colorcoat for best adhesion. Waiting longer can reduce bond strength and affect final appearance.

See our Clearcoat guide for complete clearcoat application instructions.

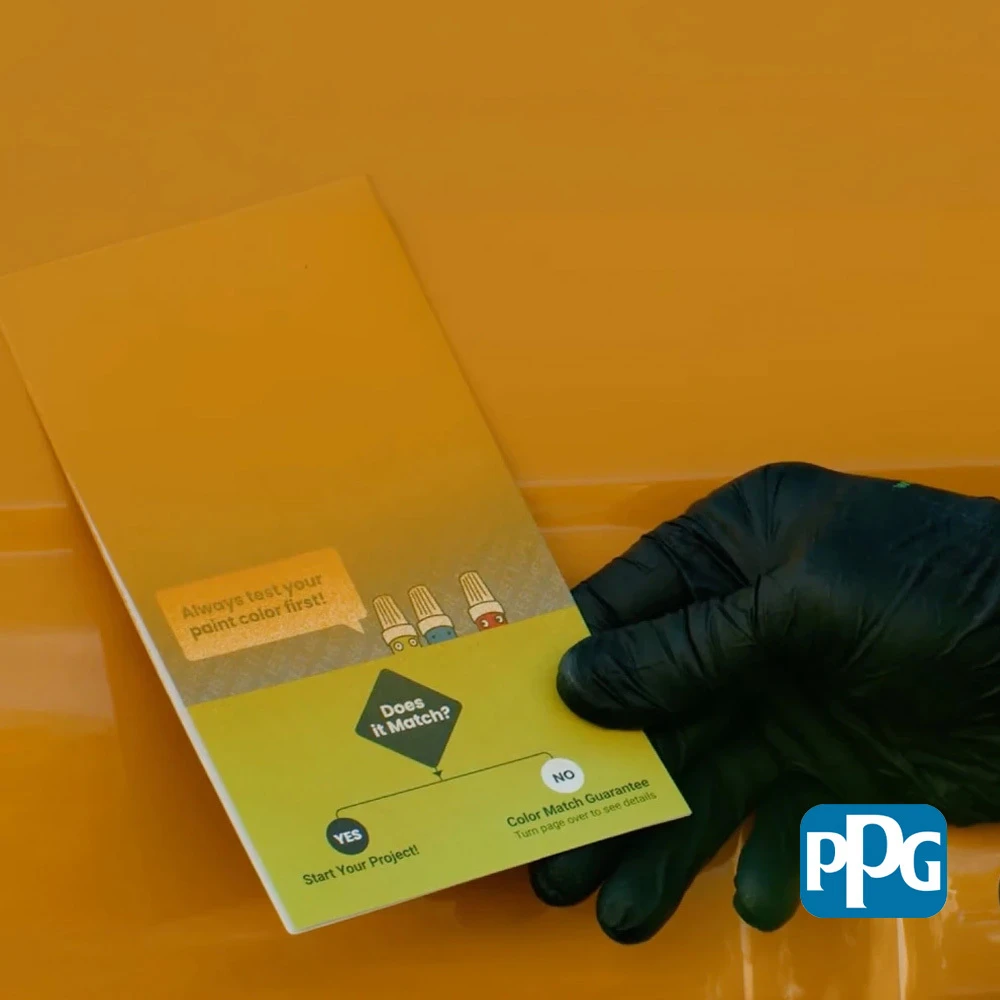

Gloved hand holding a painted test card against a yellow vehicle panel to check the color match.

TouchUpDirect Color Match Guarantee

We make every Colorcoat order to match your vehicle's exact OEM paint code. When you provide the correct paint code, our formulas match your factory color 99.7% of the time.

Backed by a name you can trust. We partner with PPG — one of the world's largest and most trusted names in automotive paint — to source the pigments behind every Colorcoat formula. Our team then matches and mixes them to your vehicle's exact factory paint code, so what you're applying isn't a generic "close enough" color, it's built on the same caliber of materials the industry relies on.

For the rare cases where factory paint variations affect the match, we'll work with you to find the right formula—and if we can't get it right, we'll provide a full refund.

Our guarantee covers:
  • Correct paint code entered at checkout
  • Paint applied according to instructions on test card
  • Picture of the test card against your vehicle to show the color difference

Learn more about our Color Match Guarantee

Frequently Asked Questions

  • What is colorcoat vs clearcoat?

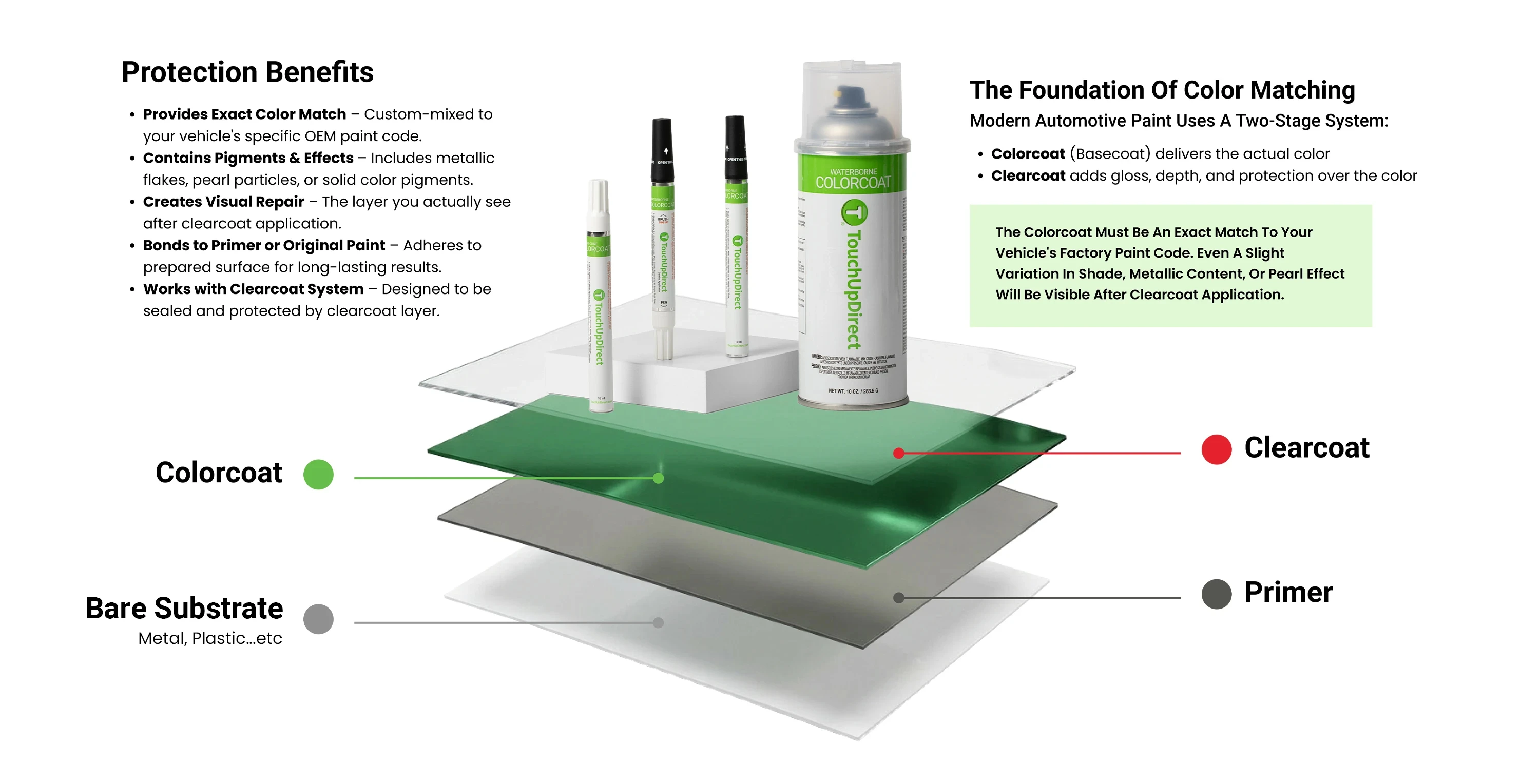

    Colorcoat (basecoat) is the pigmented layer that provides the actual color you see on your vehicle. Clearcoat is the transparent protective layer applied over colorcoat that adds gloss, depth, and UV/weather protection. Modern vehicles use both layers—colorcoat for color, clearcoat for protection and shine.

  • Do I need clearcoat over colorcoat?

    Yes, absolutely. Colorcoat alone appears flat and dull. Clearcoat is what makes the color match your vehicle's factory finish by adding gloss and depth. Without clearcoat, the repair will look obviously different from surrounding paint and won't have proper UV or weather protection.

  • How do I know which colorcoat to order?

    Use your vehicle's paint code (usually found on driver's door jamb sticker). Enter your make, year, and model in our paint finder, then select the color that matches your paint code. The paint code is typically a 2-4 character combination like "040", "1G3", or "UX".

  • Why did I receive two colorcoat applicators?

    Your vehicle has a tricoat paint system requiring two separate color layers: basecoat and midcoat. Both are necessary for proper color match.

  • Will the colorcoat match my car's faded paint?

    Our colorcoat matches your vehicle's original factory color, not faded paint. If your car's paint has faded significantly from sun exposure, the fresh touch up may appear slightly brighter.

  • Can I apply colorcoat without primer?

    You can apply colorcoat directly over original factory paint if the damage doesn't expose bare metal or plastic. If your scratch goes down to bare metal or plastic substrate, primer is required first for proper adhesion and rust prevention.

  • How many coats of colorcoat should I apply?

    Apply 2-3 coats for solid colors and 3-4 coats for metallic or pearl colors. Each coat should be thin and even. Wait 15 minutes between coats. Continue until the repair matches the surrounding paint color exactly.

  • Can I touch up tricoat colors myself?

    Yes. TouchUpDirect tricoat kits include all necessary layers (basecoat, midcoat, and clearcoat) with detailed instructions. Tricoat colors require more steps than regular paint but are completely achievable for DIY application when you follow the proper sequence.

  • The midcoat looks clear—is this right?

    Yes. Pearl tricoat midcoats contain pearl particles in a translucent carrier. This is the pearl effect layer that goes over basecoat and under clearcoat. Do not skip it.

  • Do TouchUpDirect kits include colorcoat?

    Yes. All TouchUpDirect kits (Essential, Preferred, and Platinum) include both colorcoat and clearcoat make to your vehicle's paint code. You don't need to purchase them separately. Simply enter your paint code, select your applicator type and kit level, and we'll send everything you need.

  • Can I use colorcoat on plastic bumpers?

    Yes. Automotive colorcoat works on all automotive surfaces. For plastic bumpers, apply primer first (included in Preferred and Platinum kits) to ensure proper adhesion, then apply colorcoat and clearcoat following normal instructions.
